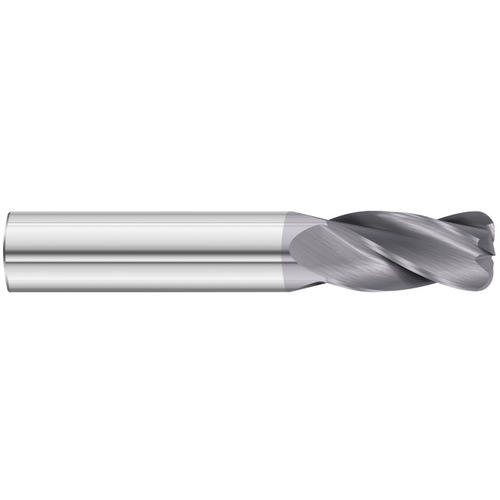

‎Corner Radius End Mill; 1/8″ Dia. × 1/2″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 3200

Item # FT8533813

UNSPSC: 27112803

Brand: Fullerton Tool

MFG#: 33813

Quantity Available

Cutting Diameter (DC)

1/8″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

1/8″

End Shape

Corner Radius

Depth of Cut Maximum (APMX)

1/2″

Corner Radius (RE)

0.02″

Overall Length (OAL)

‎1-1/2″

Tool Type

Center Cut|Single-End

Cutting Edge Material

Carbide

Length Group

Regular

Coating

AlTiN

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.125″

Flute Helix Angle (FHA)

30 Degrees

Series/List #

3200

Product Features

Remarks

‎

Square, Ball and Radius End Options

4 Flutes

30° Helix

Single and Double End Designs

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Available Uncoated and TiN, TiCN and TiAlN Coatings

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items furnished with Weldon Flats

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA
