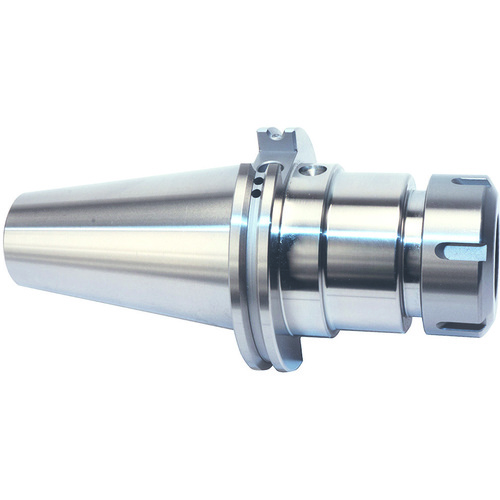

CAT40 x ER20 × 6″ - Collet Chuck
Collet Chuck ; CAT40 Shank Size ; ER20 Connection Size ; 1.339″ Body Dia. ; 4.620″ Body Length ; CAT40 Shank Dia. ; 1″ Min. Capacity ; 13″ Max. Capacity ; CAT Taper Shank ; Series 1009
| Shank Size (SS) | CAT40 | Shank Type | CAT Taper |
| Connection Size (CSI) | ER20 | Shank Standard | ANSI B5.5 |
| Body Diameter (BD) | 1.339″ | Tool Type | ER Collet Chuck |
| Protruding Length (LPR) | 6″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1″ |
| Body Length Maximum (LBX) | 5.250″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13″ |
| Body Length (LB) | 4.620″ | Series/List # | 1009 |
| Connection Diameter Machine Side (DCONMS) | CAT40 | Nut Diameter | 1.380″ |
| Flange Diameter (DF) | 2.500″ |
Product Features
| Country of Origin | China |
Shipping Info
Additional Fees and Notes
0
Package Length
6.00000
Package Width
2.50000
Package Height
2.50000
Package Weight
3.35
