DIN6987150ER32X150B
ER collet chucks with DIN69871 shank

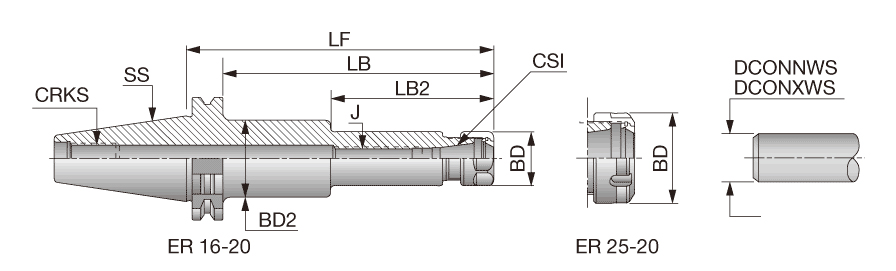

| Shank Size (SS) | 50 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER32 | Tool Type | DIN 69871 |
| Body Diameter (BD) | 50 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Protruding Length (LPR) | 8″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length (LB) | 130.9 mm | Measurement Type | Metric |
| Functional Length (LF) | 150 mm | Body Material | Steel |
Product Features
| Family Description | ER collet chucks with DIN69871 shank | Country of Origin | Japan |
| Remarks | Add B for coolant through the flange. |
Shipping Info
Package Weight
9.182
