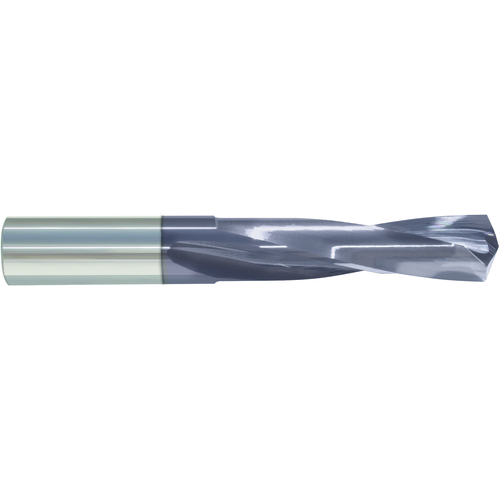

5375T 5.50MM SM DRL SC
| Drill Bit Size / Cutting Diameter (DC) | 5.5 mm | Tool Type | Solid Carbide Drills |
| Decimal Equivalent | 0.2165″ | Point Shape | Split |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.5 mm | Measurement Type | Metric |
| Length Group | Screw Machine | Series/List # | 5375T |
| Coating | TiAlN | Usable Length (LU) | 32 mm |
| Connection Diameter Machine Side (DCONMS) | 5.5 mm | Length Chip Flute (LCF) | 32 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 60 mm |
| Point Angle (SIG) | 135 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Weight
0.05
