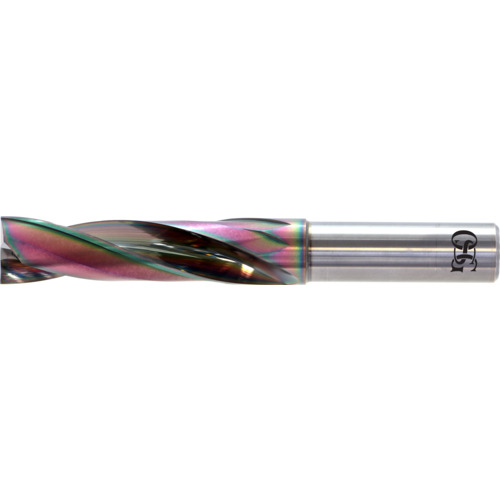

0.71 mm Dia. × 3 mm Shank × 2.4 mm Flute Length × 40 mm OAL, 2xD, EgiAs, 2 Flute, No, Solid Carbide Drill
| Drill Bit Size / Cutting Diameter (DC) | 0.71 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.71 mm | Tool Type | Stub Drill |
| Length Group | 2xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 5700 |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 2.4 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Length Chip Flute (LCF) | 2.4 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 40 mm |
| Point Angle (SIG) | 0 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 2.4 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | China |
Shipping Info
LocalField10
0
Package Weight
0.015
