QR0508152N7R02

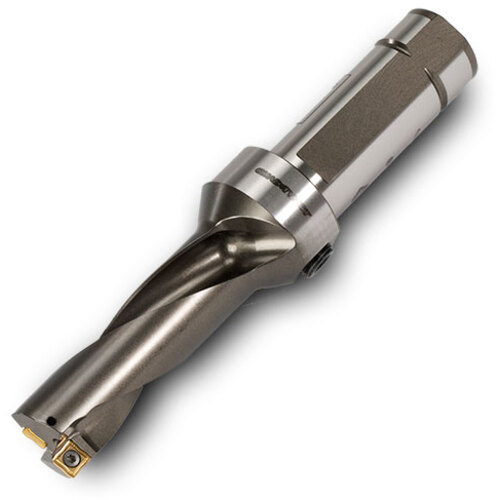

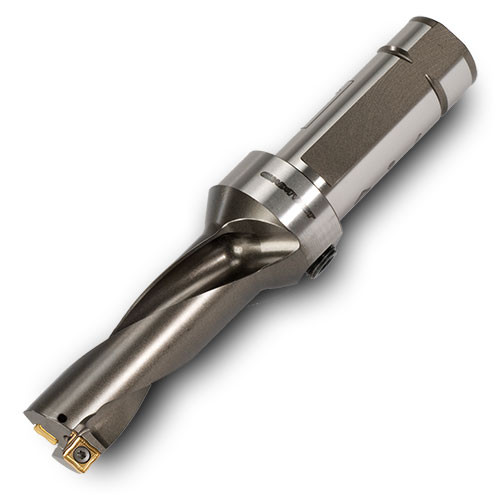

Indexable Insert Drill; 2″ Dia. × 6″ LU × 1-1/2″ Shank Dia. × 10-3/4″ OAL ; 3D ; Steel

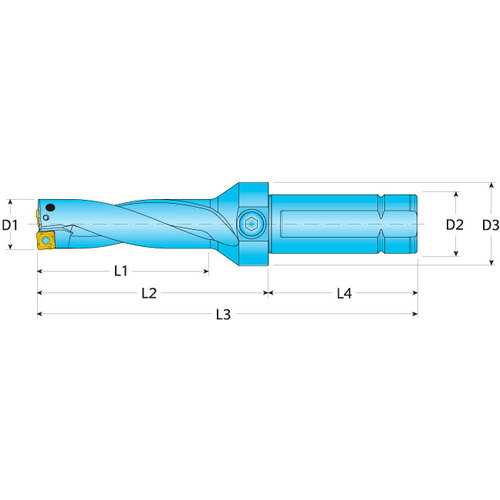

| Cutting Diameter (DC) | 2″ | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 6″ | Cutting Diameter Maximum (DCX) | 2.03″ |
| Application | | Drill Mill | Drilling | | Flange Diameter (DF) | 2.362″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Point Length (PL) | 0.084″ |
| Shank Size (SS) | 1″ | Measurement Type | Inch |
| Tool Type | Indexable Drill | Length Group | 3D |
| Shank Length (LS) | 3.16″ | Effective No. of Teeth | 1 |
| Functional Length (LF) | 7.6″ | Body Material | Steel |
| Overall Length (OAL) | 10-3/4″ | Decimal Equivalent | 2″ |
Product Features
| Family Description | Extended Length Shank For Maximum Clamping Surface Ideal For Lathe Applications Note: Brass coolant fitting should be ordered separately | Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
4.960
