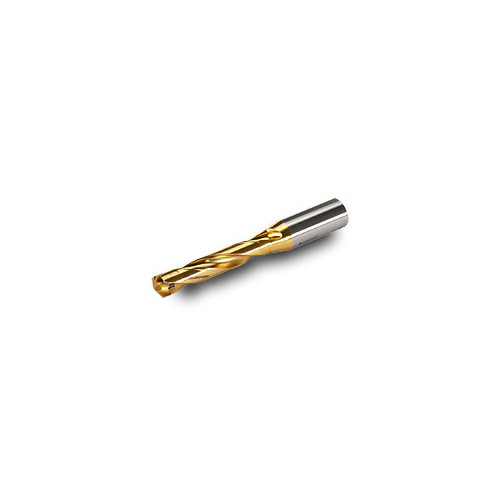

TD0850042S4R01
Coolant Through Holds +.002/-.000 on Hole Diameter
| Usable Length (LU) | 1.67″ | Shank Length (LS) | 1.77″ |
| Length Group | 5D | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drill Mill | Drilling | | Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 8.5 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.3346″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.3504″ | Body Material | Steel |
| Functional Length (LF) | 3.837″ |
Product Features
| Family Description | Coolant Through Holds +.002/-.000 on Hole Diameter | Country of Origin | S.Korea |
Shipping Info
LocalField10
0
Package Length
1.75000
Package Width
5.25000
Package Height
1.75000
Package Weight
0.44
