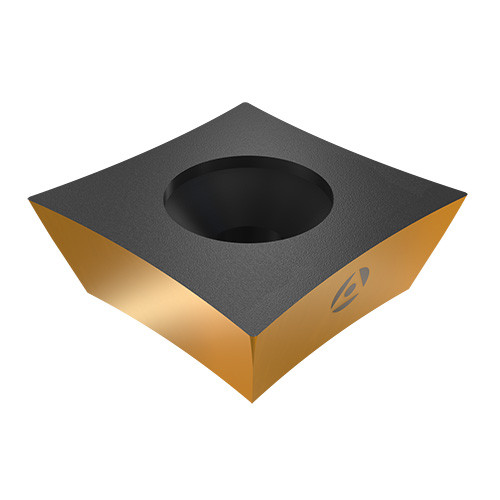

SQ86-10-9.5-E ZA54H
Turning Insert; 90 Square ; 1″ Length × 9-1/2″ Corner Radius ; ZA54H ; TiAlN
| Application | | Ext Int Pipe Scarfing | | Tool Type | Scarfing Insert |
| Insert Style | SQ86 | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 9-1/2″ | Number of Cutting Edges | 3 |
| Insert Size | 86 | Quantity | 10 |
| Cutting Edge Length (L) | 1″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.377″ | Shape | 90° Square |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | ISOI |
| Coating | TiAlN | Body Material | Carbide |
| Grade | ZA54H | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.265″ |
Product Features
| Family Description | External Pipe Scarfing SQ86 1.000″ IC Inserts | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.65
