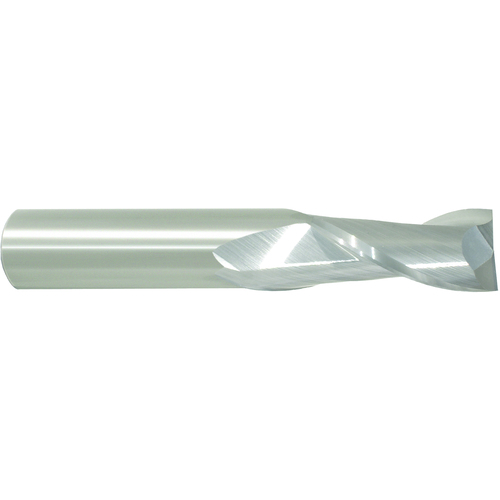

7/16″ × 7/16″ × 2″ × 4″ 2 Flute Single End Carbide Finishing Center Cutting End Mill-Uncoated Series/List #5954
| Cutting Diameter (DC) | 7/16″ | Usable Length (LU) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 2″ | Tool Type | Single End |
| Overall Length (OAL) | 4″ | Length Group | Long |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.4375″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5954 |
| End Shape | Square |
Product Features
| Remarks | •Solid Carbide 2-Flute Single End Mills •Micrograin Long Length | Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.50000
Package Weight
0.256
