ASV04N300-U025

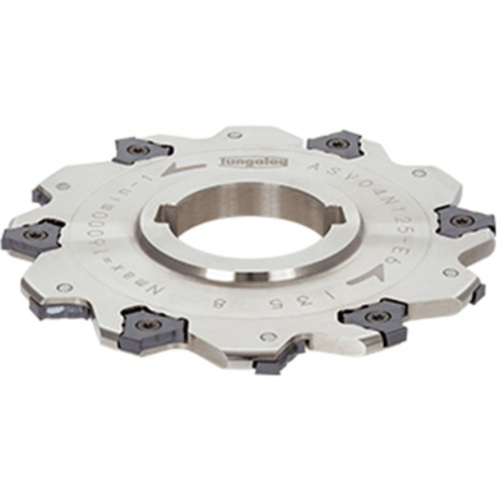

Axial drive type slot milling cutter with tangentially mounted inserts

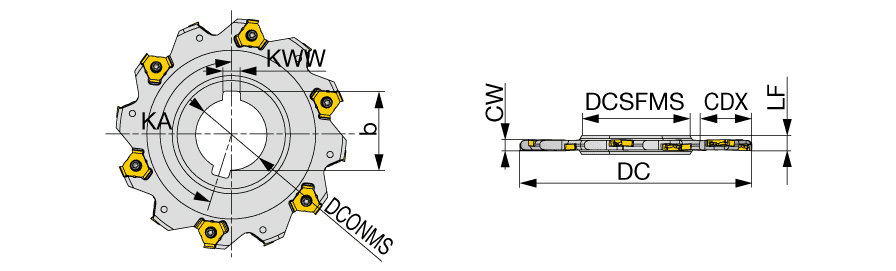

| Cutting Diameter (DC) | 3″ | Overall Length (OAL) | 0.38″ |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | TVKX04H3** |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Application | | Slot Milling | |
| Cutting Depth Maximum (CDX) | 0.595″ | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Hub Thickness (THUB) | 0.38″ | Body Material | Steel |
| Cutting Width (CW) | 1/4″ |
Product Features
| Family Description | Axial drive type slot milling cutter with tangentially mounted inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.578
