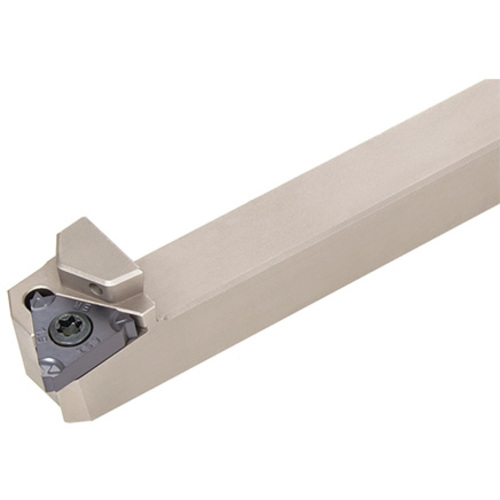

JSE2R1616X16-CHP
External threading toolholder with high pressure coolant channels, for swiss-type lathe. Compatible to the direct internal coolant supply system without the use of external coolant hose.

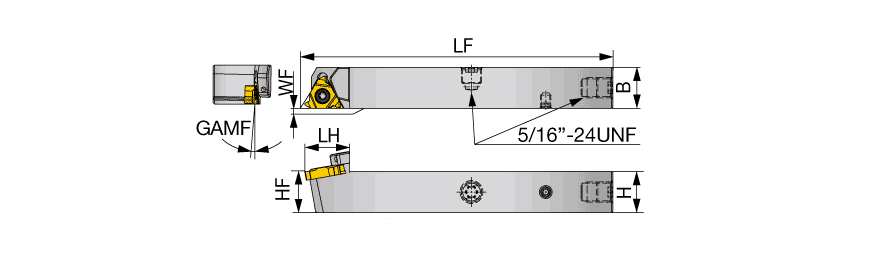

| Head Length (LH) | 19 mm | Functional Width (WF) | 0 mm |
| Overall Length (OAL) | 120 mm | Master Insert Identification (MIID) | 16ERA60 |
| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | External Non-Rotating Threading Tools |
| Cutting Direction (HAND) | Right Hand | Cutting Depth Maximum (CDX) | 19 mm |
| Application | | Ext Threading | | Measurement Type | Metric |
Product Features
| Family Description | External threading toolholder with high pressure coolant channels, for swiss-type lathe. Compatible to the direct internal coolant supply system without the use of external coolant hose. | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.571
