CEL1616H16DT

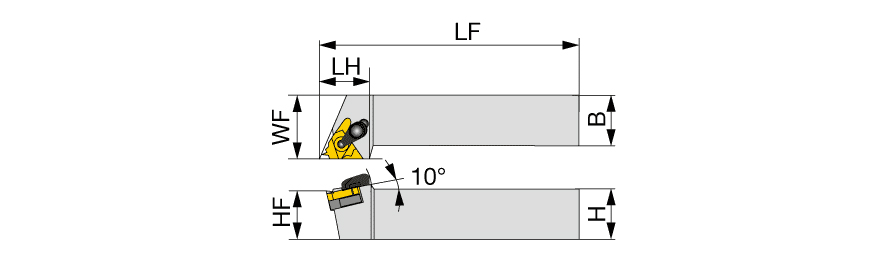

| Head Length (LH) | 24 mm | Functional Width (WF) | 20 mm |
| Overall Length (OAL) | 100 mm | Master Insert Identification (MIID) | 16ELA60 |
| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | External Non-Rotating Threading Tools |
| Cutting Direction (HAND) | Left Hand | Cutting Depth Maximum (CDX) | 24 mm |
| Application | | Ext Threading | | Measurement Type | Metric |
Product Features
| Family Description | External threading toolholders, Altanative clamping of screw-on or clamp-on (DT type only) | Country of Origin | JAPAN |
| Remarks | Note: A clamp set for CER/L type consists of a clamp and a clamping screw. A shim set for CER/L type consists of a shim and a shim screw. Standard shims for CER/L type can be used for both left hand and right hand toolholders.Use either of the sides depending on the hand. |
Shipping Info
Package Weight
0.509
