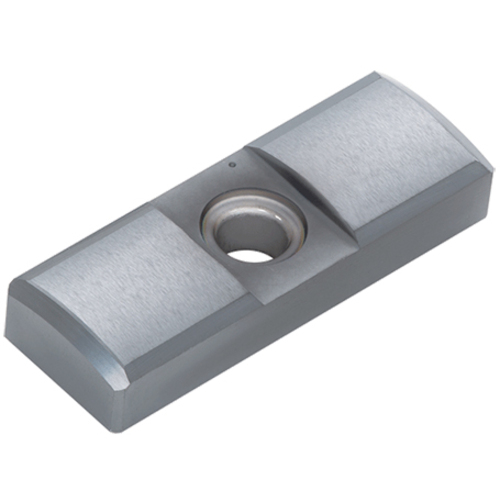

GP10 F1122

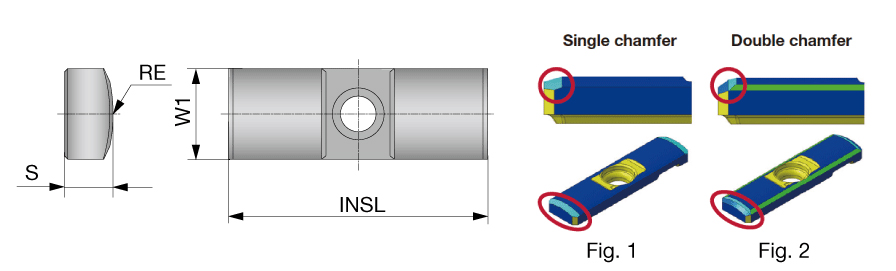

Guide pad (Single chamfer, Double chamfer)
| Overall Length (OAL) | 1.378″ | Body Material | Steel |
| Measurement Type | Inch | Corner Radius (RE) | 0.7874″ |
| Width (W) | 0.394″ | Grade | F1122 |
| Thickness (H) | 0.236″ | Cutting Edge Material | Carbide |
| Application | | Accessories | BTA system | General Drilling | Gundrill | | Coating | AlTiCrN |
Product Features
| Family Description | Guide pad (Single chamfer, Double chamfer) | Country of Origin | JAPAN |
| Remarks | For applicable drill, click on "More Info". |
Shipping Info
Package Weight
0.265
Related Documentation

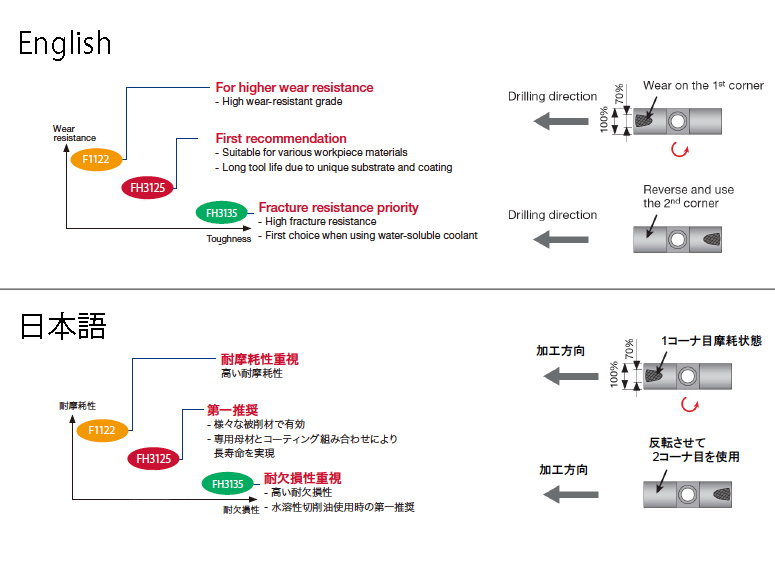

Guide pads are subject to wear, like inserts @- The guide pad can be used on two end faces. @- When the first face wears up to 70% of its width, reverse the guide pad to use the second face. @- Replace with a new guide pad when the second face wears out.
