C5ODP12X53

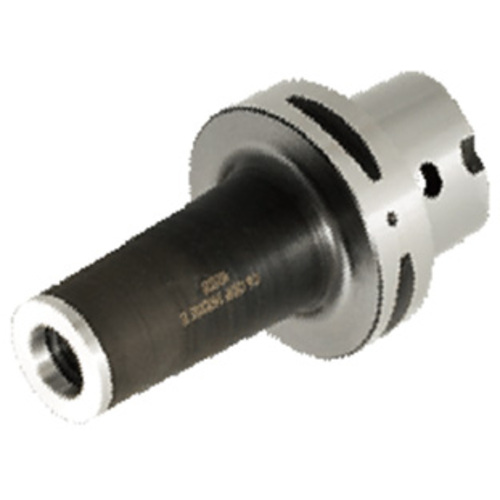

TungCap TungFlex modular tooling system

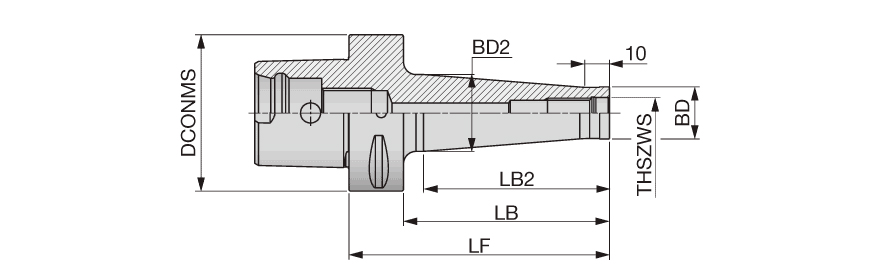

| Shank Size (SS) | 50. | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 1.299″ | Nose Diameter | 3.268″ |
| Body Diameter (BD) | 0.827″ | Overall Length (OAL) | 2.087″ |
| Connection Diameter Machine Side (DCONMS) | 1.969″ | Measurement Type | Inch |
| Application | | Face contact interface | | Body Material | Steel |
| Body Length_2 (LB_2) | 0.984″ |
Product Features
| Family Description | TungCap TungFlex modular tooling system | Country of Origin | ISRAEL |
| Remarks | Applicable for 7 MPa coolant |
Shipping Info
Package Weight
1.239
