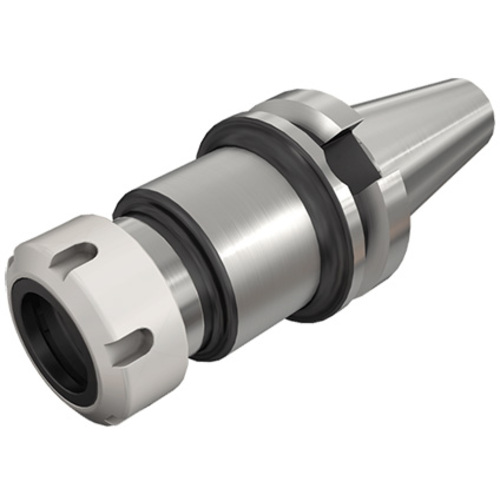

BT40ER40X100
ER collet chucks with BT shank

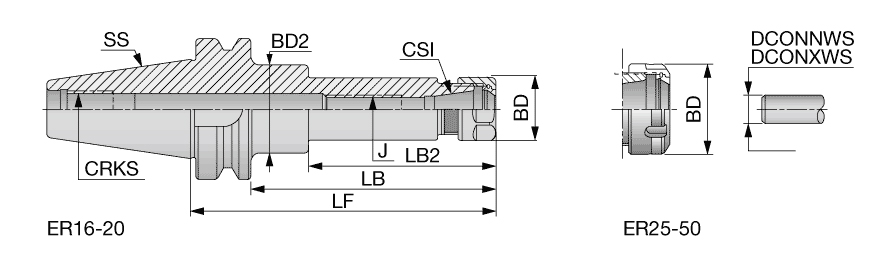

| Shank Size (SS) | BT40 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER40 | Tool Type | BT |
| Body Diameter (BD) | 2.48″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.118″ |
| Body Length (LB) | 2.874″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.024″ |
| Shank Length (LS) | 2.575″ | Measurement Type | Inch |
| Functional Length (LF) | 3.937″ | Body Material | Steel |
Product Features
| Family Description | ER collet chucks with BT shank | Country of Origin | ISRAEL |
| Remarks | Add B for coolant through the flange. Wrench is not included. |
Shipping Info
Package Weight
3.633
