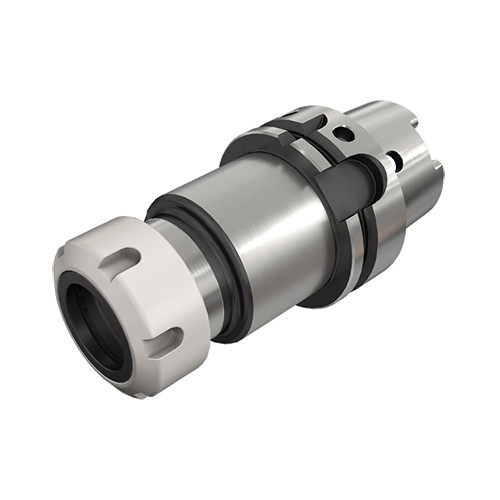

HSKA100ER20X160
ER collet chucks with HSK-A shank

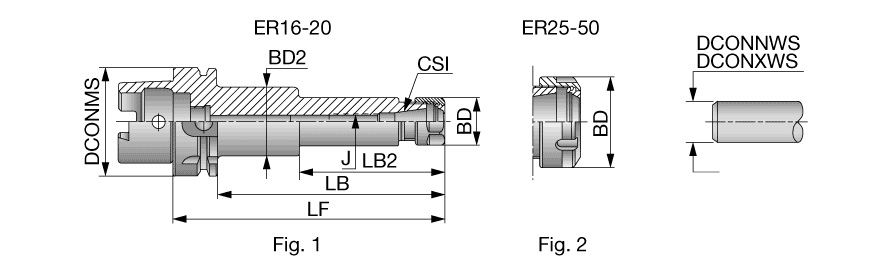

| Shank Size (SS) | HSK A 100 | Functional Length (LF) | 6.299″ |
| Connection Size (CSI) | ER20 | Application | | Face contact interface | |
| Body Diameter (BD) | 1.339″ | Tool Type | HSK |
| Body Diameter_3 (BD_3) | 1.772″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.039″ |
| Body Length (LB) | 5.157″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.512″ |
| Body Length_2 (LB_2) | 3.346″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3.937″ | Body Material | Steel |
| Shank Length (LS) | 1.969″ |
Product Features
| Family Description | ER collet chucks with HSK-A shank | Country of Origin | ITALY |
Shipping Info
Package Weight
7.275
