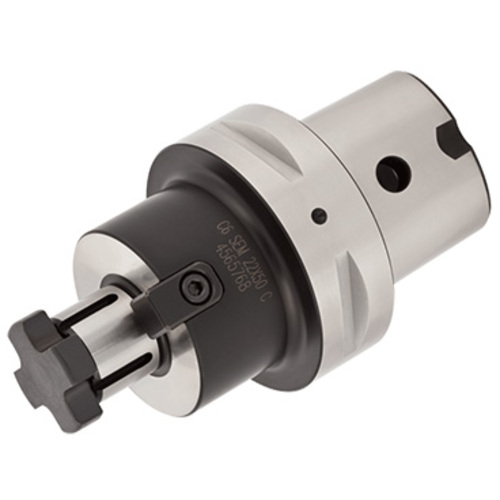

C5SEM22X70C
TungCap shell mill holders (with coolant nozzle)

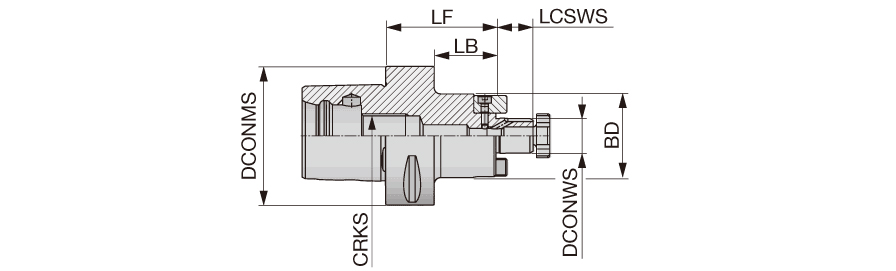

| Connection Diameter Machine Side (DCONMS) | 50 mm | Thread Size | FDA |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Shank Size (SS) | C5 | Application | | Face contact interface | |
| Body Length (LB) | 50 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 47 mm | Measurement Type | Metric |
| Overall Length (OAL) | 70 mm | Body Material | Steel |
Product Features
| Family Description | TungCap shell mill holders (with coolant nozzle) | Country of Origin | ISRAEL |
| Remarks | Applicable for 7 MPa coolant. Wrench is not included |
Shipping Info
Package Weight
2.650
