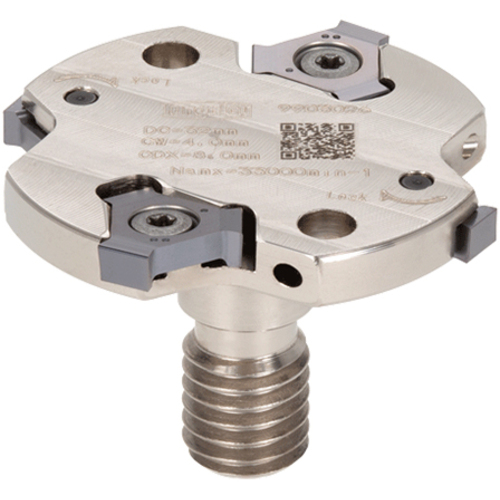

HSV02R032M08-02W4.0C
Slot mill for tangentially mounted inserts, with TungFlex connection

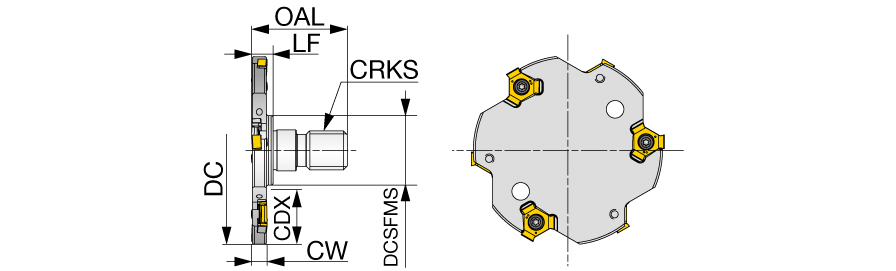

| Cutting Diameter (DC) | 32 mm | Application | | Slot Milling | |
| Cutting Width (CW) | 4 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 7.75 mm | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 | Body Material | Steel |
| Connection Thread Nominal Size Machine Side (THSZMS) | M8 | Cutting Item Count (CICT) | 4 |
| Overall Length (OAL) | 22.5 mm | Functional Length (LF) | 5.5 mm |
| Usable Length (LU) | 0.02 kg | Master Insert Identification (MIID) | TVKX020202TN-MJ |
Product Features
| Family Description | Slot mill for tangentially mounted inserts, with TungFlex connection | Country of Origin | JAPAN |
| Remarks | For how to assemble the inserts to the cutter body and how to assemble the cutter body to the shank, click on "More Info". |
Shipping Info
Package Weight
0.000
Related Documentation

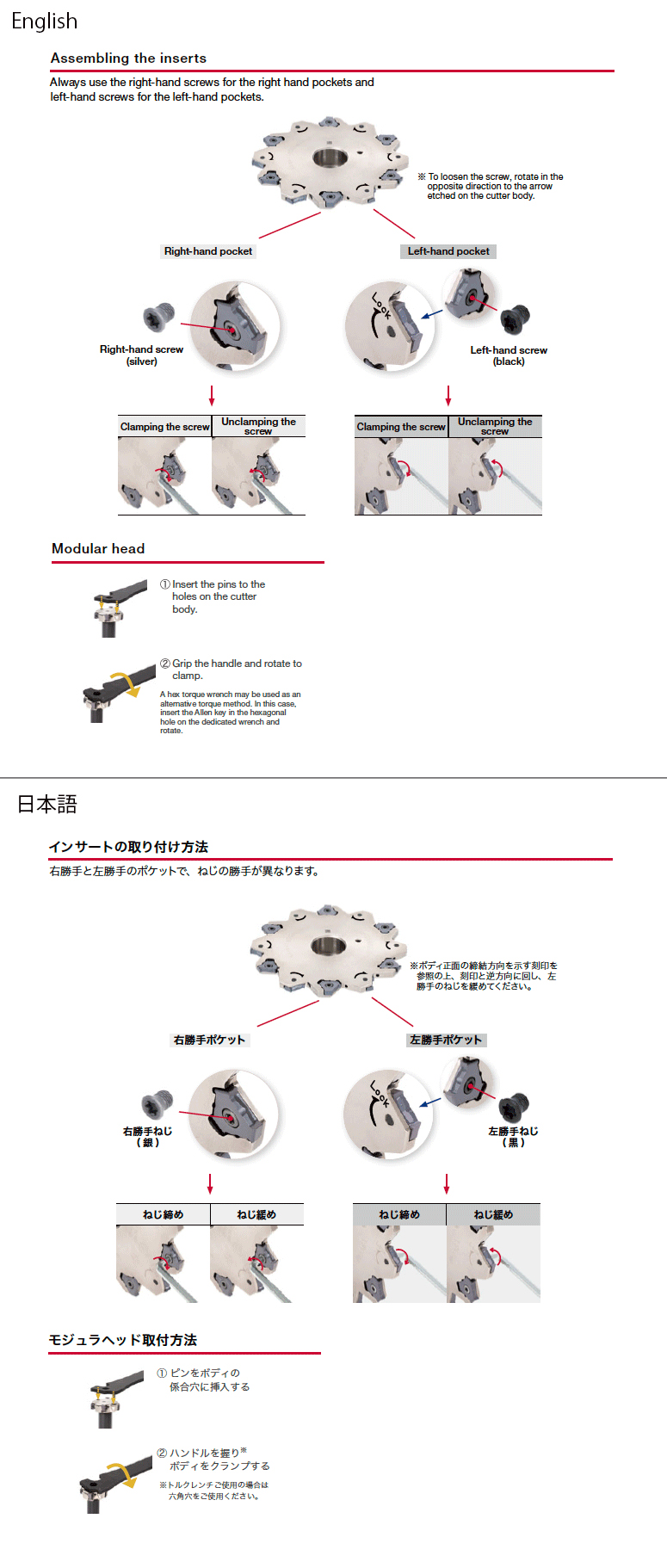

[Assembling the inserts] @Always use the right-hand screws for the right hand pockets and left-hand screws for the left-hand pockets. @To loosen the left-hand screw, rotate in the opposite direction to the arrow etched on the cutter body. @[Modular head] @(1) Insert the pins to the holes on the cutter body. @(2) Grip the handle and rotate to clamp. A hex torque wrench may be used as an alternative torque method. In this case, insert the Allen key in the hexagonal hole on the dedicated wrench and rotate.
