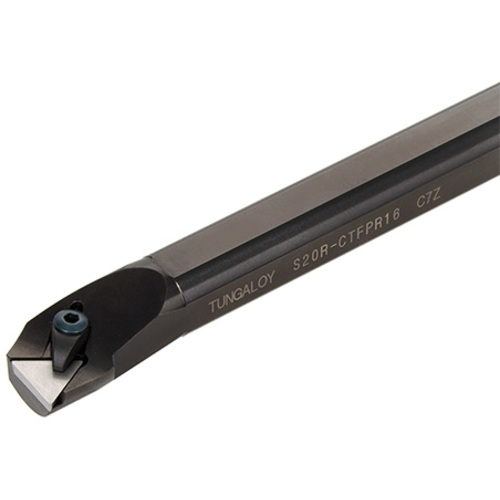

S16Q-CTFPR11
Clamp-on boring bar, for posi triangle insert with 11 deg clearance

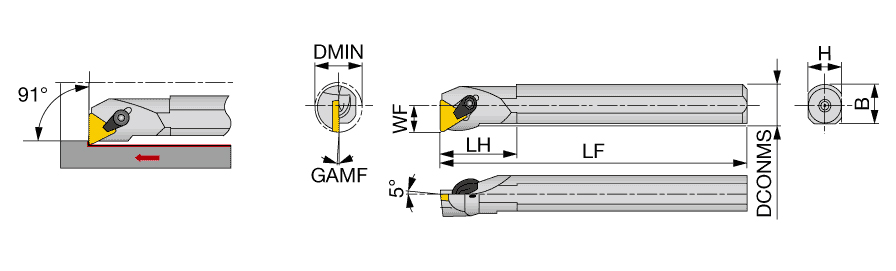

| Connection Diameter Machine Side (DCONMS) | 16 mm | Minimum Bore Diameter (DMIN) | 20 mm |
| Functional Length (LF) | 180 mm | Application | | For Triangular insert | |
| Head Length (LH) | 30 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -4 Degrees |
| Shank Width (B) | 15 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 11 mm | Body Material | Steel |
| Master Insert Identification (MIID) | TPMT110304 | Measurement Type | Metric |
Product Features
| Family Description | Clamp-on boring bar, for posi triangle insert with 11 deg clearance | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the right hand toolholders (CTFPR** type), and the left hand insert (L) is used forthe left hand toolholders (CTFPL** type). For chipbreaker piece, click on "More Info". |
Shipping Info
Package Weight
0.701
Related Documentation

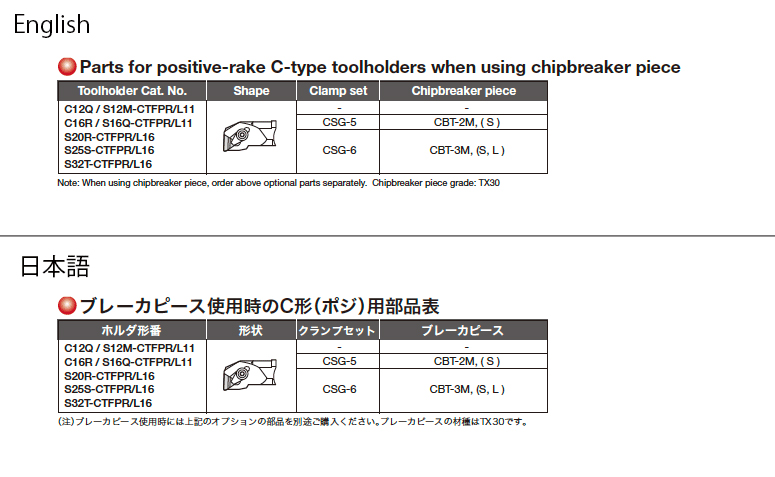

When using chipbreaker piece, order the following optional parts separately.
