TPO18R200U0075A05

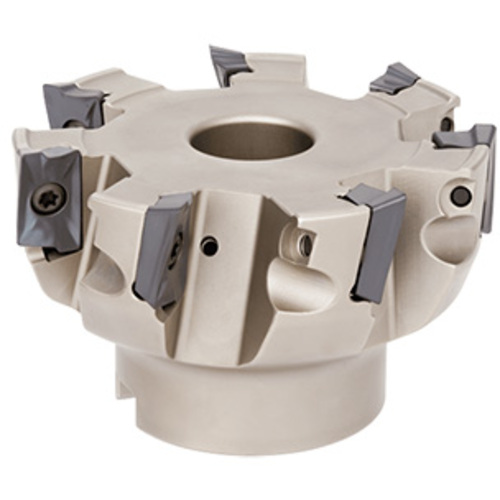

High precision shoulder square milling cutter with AOMT/AOGT18 inserts

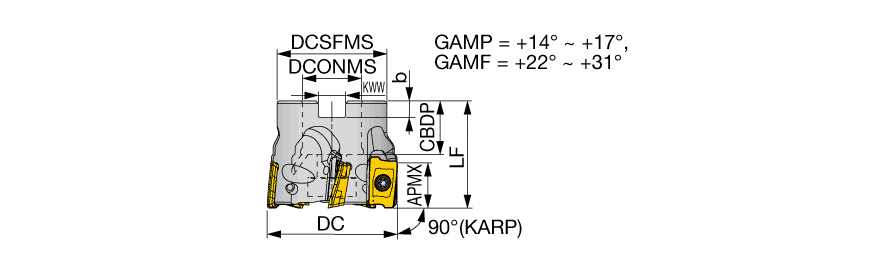

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | AOMT180508PDPR-MJ |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 0.657″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Functional Length (LF) | 1.57″ |
| Overall Length (OAL) | 1.57″ | Tool Type | 90 Facemills |
Product Features
| Family Description | High precision shoulder square milling cutter with AOMT/AOGT18 inserts | Country of Origin | S.Korea |
| Remarks | The DC in the table show the lengths when MJ chipbreaker is used. When AJ chipbreaker is used, the diameter is equal to the DC + 0.2 mm. |
Shipping Info
LocalField10
0
Package Weight
3.31
