| Usable Length (LU) | 1.693″ | Shank Length (LS) | 0.748″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |

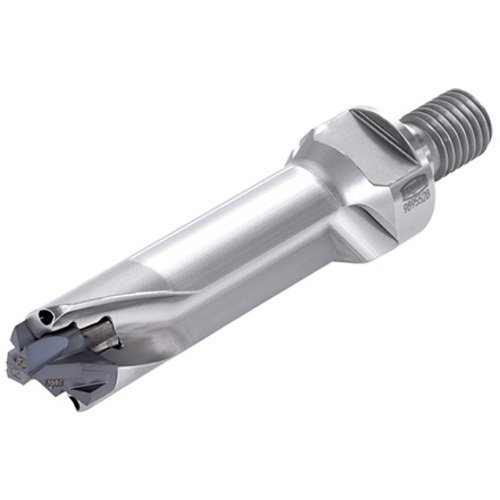

| Tool Type | indexable head drills | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 13 | Master Insert Identification (MIID) | DMP135 |
| Cutting Diameter Minimum (DCN) | 0.5315″ | Point Length (PL) | 0.081″ |
| Cutting Diameter Maximum (DCX) | 0.5472″ | Body Material | Steel |
| Overall Length (OAL) | 3.278″ | Flange Diameter (DF) | 0.709″ |
Product Features
| Family Description | DrillMeister Modular body with TungFlex connection | Country of Origin | JAPAN |
