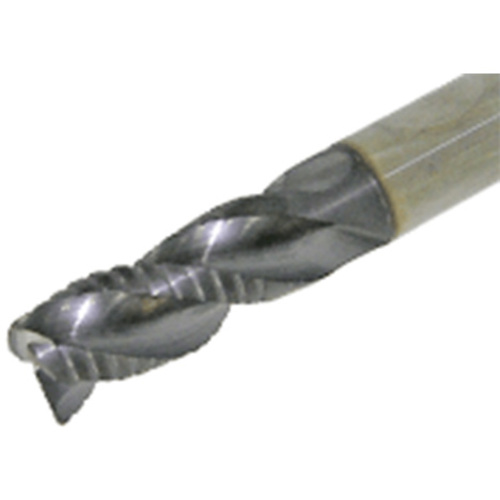

TECP080E3L-18/26W08S63 AH725
Chamfer End Mill; 8 mm Dia. × 18 mm LOC × 8 mm Shank Dia. × 63 mm OAL ; 3 FL ; Carbide ; TiAlN

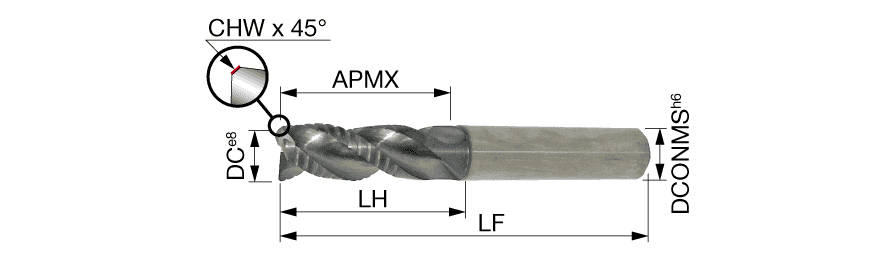

| Cutting Diameter (DC) | 8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 18 mm | Corner Chamfer Width (CHW) | 0.4 mm |
| Overall Length (OAL) | 63 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Head Length (LH) | 26 mm |
| Coating | TiAlN | Neck Length (LN) | 26 mm |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Weldon | Measurement Type | Metric |
| End Shape | Chamfer |
Product Features
| Family Description | 3 flute roughing endmill, 38 deg helix angle, with chip splitter | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.097
