TEC060E5L-15C06CF-57 AH725

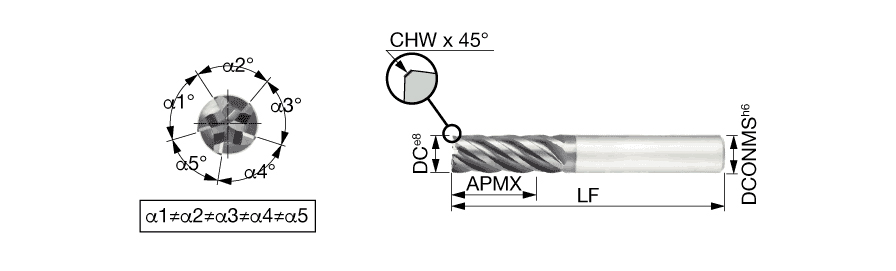

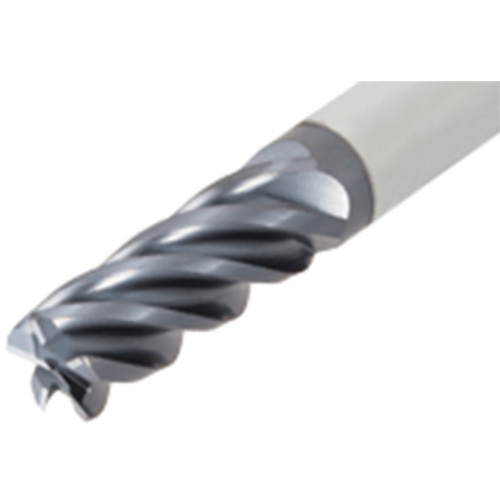

5 flute endmill, 38 deg helix angle, variable pitch
| Cutting Diameter (DC) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 15 mm | Corner Chamfer Width (CHW) | 0.2 mm |
| Overall Length (OAL) | 57 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN | Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |
| Flute Count (NOF) | 5 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Chamfer | Measurement Type | Metric |
Product Features
| Family Description | 5 flute endmill, 38 deg helix angle, variable pitch | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.053
