TEC030E3-05C06-E36 AH725
3 flute endmill, 30 deg or 38 deg helix angle, short type

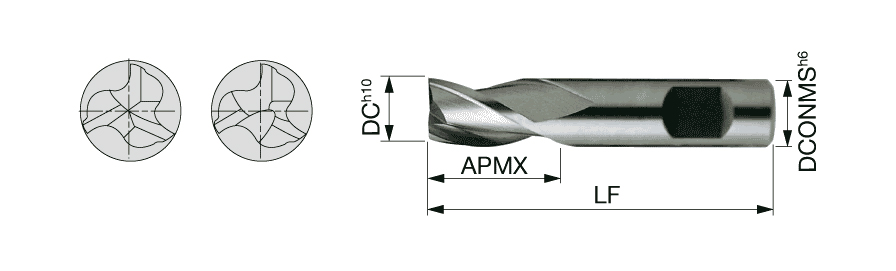

| Cutting Diameter (DC) | 3 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 36 mm | Application | | Shoulder Milling | |
| Cutting Edge Material | Carbide | Grade | AH725 |
| Coating | TiAlN | Head Length (LH) | 8.4 mm |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Metric |
Product Features
| Family Description | 3 flute endmill, 30 deg or 38 deg helix angle, short type | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.031
