48J-3107R7RD25 IN2006

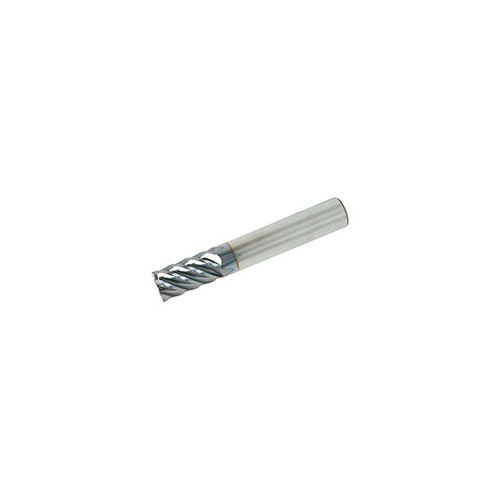

Square End Mill; 0.313″ Dia. × 3/4″ LOC × 0.313″ Shank Dia. × 2-1/2″ OAL ; 6 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 0.313″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 0.313″ | Application | | Countersinking | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 3/4″ | Grade | IN2006 |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Decimal Equivalent | 0.313″ |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | Sharp |
| End Shape | Square | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Country of Origin | Usa |
