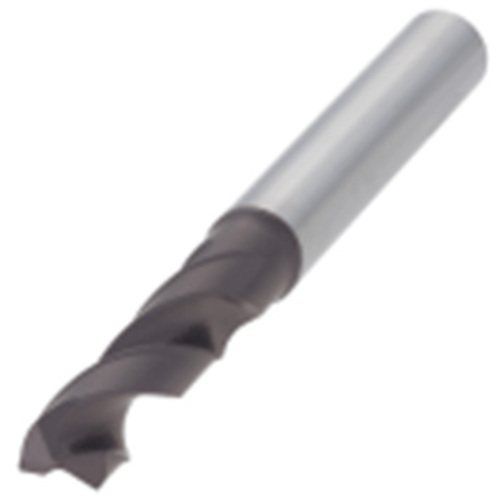

DSW038-029-06DE5 AH725
| Drill Bit Size / Cutting Diameter (DC) | 3.8 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.8 mm | Cutting Edge Material | Carbide |
| Coating | TiAlN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH725 |
| Application | | General Drilling | | Measurement Type | Metric |

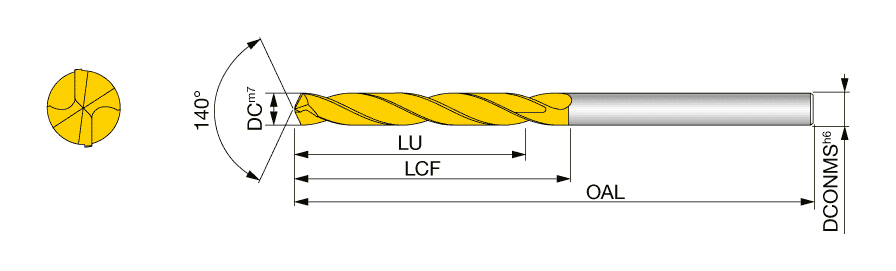

| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 29 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 36 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 74 mm |
| Point Length (PL) | 0.69 mm | Body Material | Carbide |
| Shank Length (LS) | 35 mm |
Product Features
| Family Description | Solid carbide drill without coolant hole, L/D=5 | Country of Origin | SOUTH KOREA |
