A06-SCLCL2

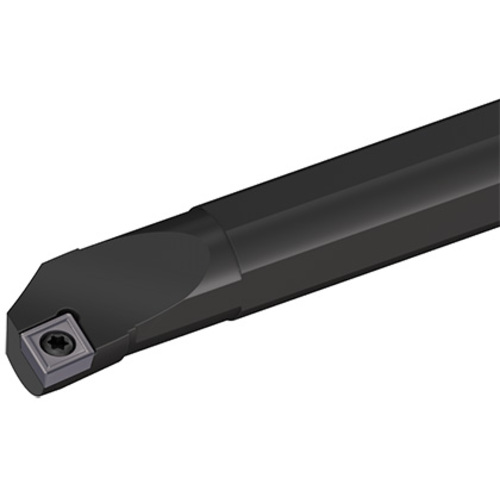

Screw-on boring bar for Posi 80 deg rhombic insert with 7 deg clearance

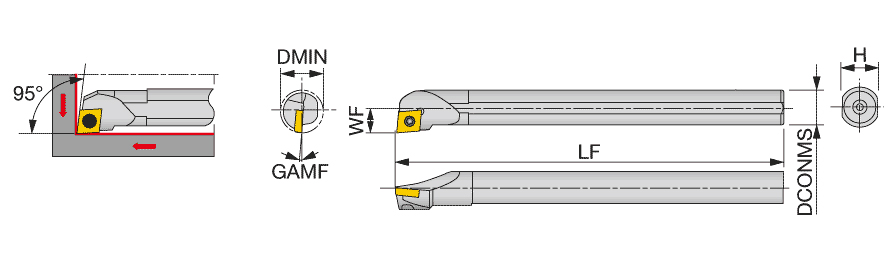

| Connection Diameter Machine Side (DCONMS) | 3/8″ | Application | | For 80deg Rhombic insert | |
| Minimum Bore Diameter (DMIN) | 0.437″ | Functional Width (WF) | 1/4″ |
| Functional Length (LF) | 4-3/4″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw-on boring bar for Posi 80 deg rhombic insert with 7 deg clearance | Country of Origin | USA |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (SCLCL** type), and the left hand insert (L) is used for the right hand toolholders (SCLCR** type). These products are for the North American Region only. |
