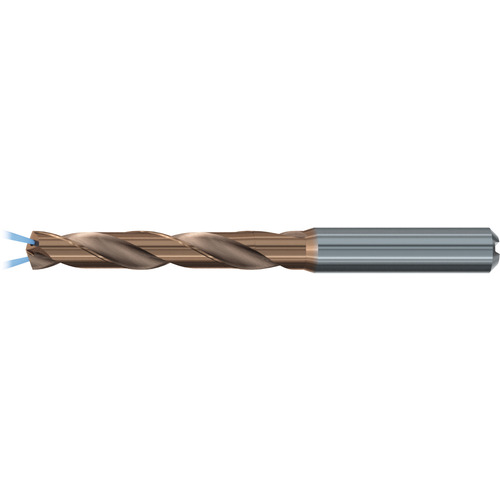

Solid Carbide Drill; 21/64″ Dia. × 10 mm Shank Dia. × 103 mm OAL ; 140 Degrees ; 5xD ; ALCR-89

Drill Bit Size / Cutting Diameter (DC) | 21/64″ | Cutting Edge Material | Carbide |
Drill Bit Size / Cutting Diameter (DC) - Inch | 21/64″ | Tool Type | High Penetration Rate Drill |
Decimal Equivalent | 0.3281″ | Measurement Type | Inch |
Length Group | 5xD | Series/List # | INOX Drill |
Coating | AlCr | Usable Length (LU) | 61 mm |
Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Overall Length (OAL) | 103 mm |
Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Count (NOF) | 2 |
Coolant Supply Property (CSP) | Coolant Thru | Feature | • InoxDrill is designed for high penetration rate drilling in production applications.
• Self-centering point geometry that eliminates the need for spot drilling.
• Unique flute design creates short, constant chip formations that eliminate the need for peck-drilling.
• Advanced ALCR-89 coating for heat and wear resistance in aerospace materials. |
Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | HA |
Shank Standard | DIN 6535 | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
Country of Origin | Germany |
Shipping Info
Package Weight
0.145
