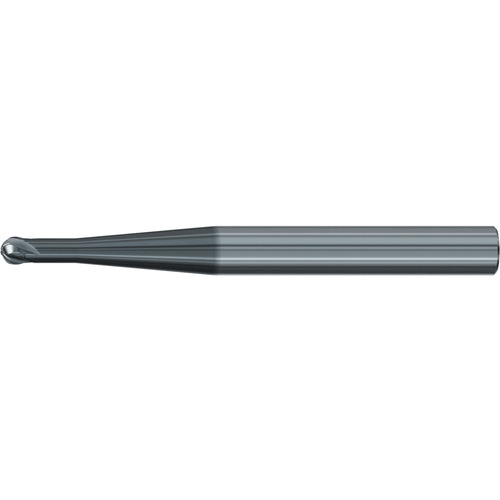

Ballnose End Mill; 6 mm Dia. × 4.6 mm LOC × 10 mm Shank Dia. × 105 mm OAL ; 4 FL ; Carbide ; AlCr ; Series 2564L
| Cutting Diameter (DC) | 6 mm | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 4.6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 105 mm | Application | | Finishing | |
| Cutting Edge Material | Carbide | Tool Type | Ballnose Endmill |
| Coating | AlCr | Series/List # | 2564L |
Product Features
| Remarks | • TOP-Cut "Lollipop" carbide ball nose end mill in long and extra long design for roughing and finishing operations in many materials • Ball nose with up to 240° cutting range enables undercut machining • ALCR coating for longer tool life, very well suited for high-alloyed materials | Country of Origin | Germany |
Shipping Info
Package Weight
0.185
