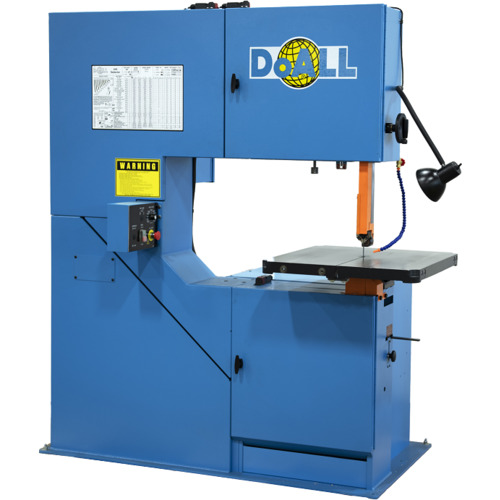

3613-V5 CONTOUR
| Horizontal/Vertical | Vertical | Blade Thickness | 0.032″ - 0.035″ |
| round_capacity__90deg | 13″ | Blade Width | 1/16″-1″ |
| rectangle_capacity__90deg | 13″ × 36″ | Drive System | Variable Frequency AC Drive |
| Horsepower | 5 hp | Miter-Cutting | No |
| Voltage | 208 V/460 V | Table Tilt | 10P-45N |
| Phase | 3 Phase | Series/List # | Contour |
| Blade Length | 199″ |
Product Features
| Remarks | • Production Level: Medium/Intermediate • Speed: High-Speed • Standard features: 5 Hp Drive Motor, Work Light, Chip Blower and Post Elevating Hand Wheel • Take all of the features and benefits of the 36XX Series of DoALL band saws and turn it up a notch with a higher-speed cutting rate for volume production applications. • The DoALL 3613-V5 high speed, vertical contour band saw features a variable frequency 5 hp (3.75 kW) AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life. As an additional safety feature for the operator, a dynamic braking function rapidly stops blade motion when power is shut-off – reducing kickback from materials and injury from the band saw blade. • The 3613-V5 medium production, upright metal cutting band saw is widely used in locations that cut a large variety of materials in one production day. The 3613-V5 can also be used for plastics, wood and other materials – making it a flexible "work horse" for facilities that demand only the best finished products. | Country of Origin | Taiwan |
Shipping Info
Package Weight
6
