2QP-CCGT32.52 MW-HP BXA20

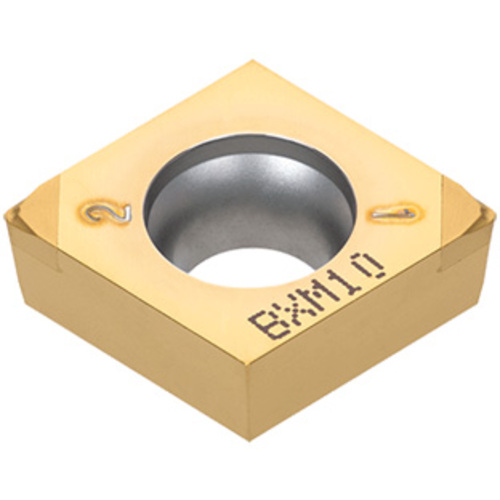

Positive 7 deg relief angle, G class, 80 deg rhombic CBN insert with chipbreaker for finishing of hardened steel
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0079″ |

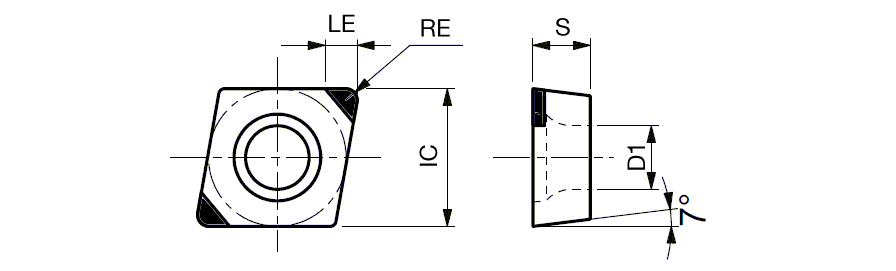

| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.382″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | Posi-MW-HP |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | BXA20 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Edge Effective Length (LE) | 0.114″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7 deg relief angle, G class, 80 deg rhombic CBN insert with chipbreaker for finishing of hardened steel | Country of Origin | Japan |
| Remarks | The last letter of designation means as below. HP : Standard honing FW HP, MW HP, WL HP : Wiper |
