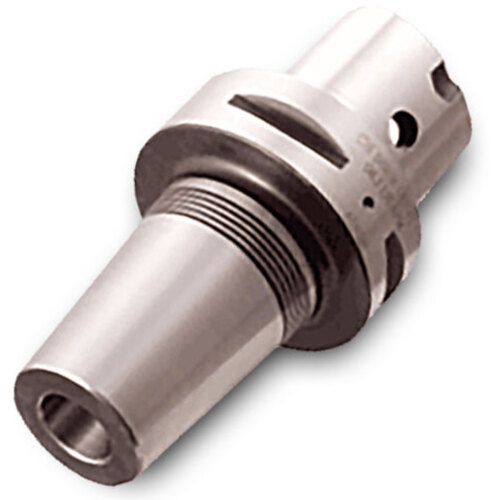

C5SRKIN8X75
For use with Induction style heating units only

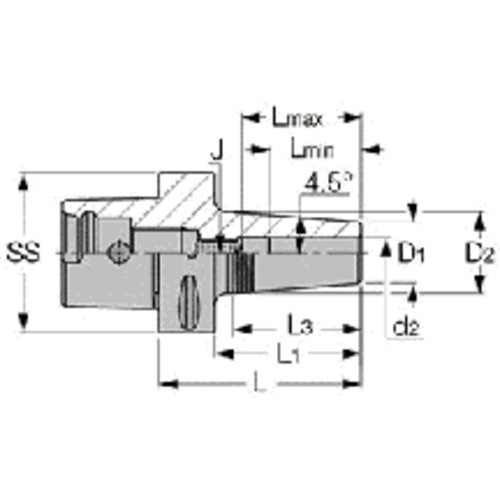

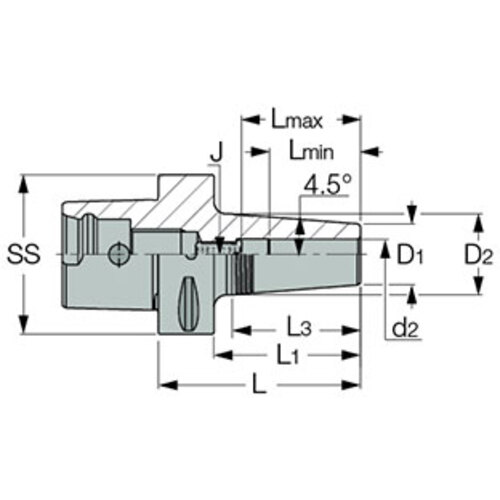

| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Thread Designation Inside (THID) | M6 |
| Shank Size (SS) | C5 | Clamping Length Workpiece Side (LSCWS) | 36 mm |
| Body Length (LB) | 38.1 mm | Usable Length (LU) | 75 mm |
| Body Diameter (BD) | 27 mm | Series/List # | SHRINK |
| Body Taper End Diameter (BTED) | 21 mm | Measurement Type | Metric |
| Body Length Maximum (LBX) | 55 mm | Body Material | Steel |
| Overall Length (OAL) | 150 mm |
Product Features
| Family Description | For use with Induction style heating units only | Country of Origin | Usa |
Shipping Info
LocalField10
0
Package Weight
1.493
