TEN09L100M31.7-08

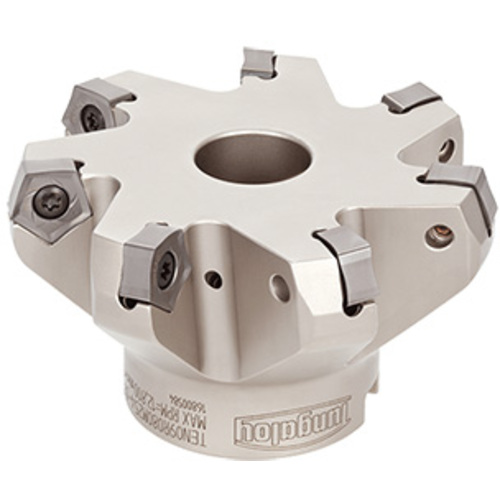

70deg face mills with double sided pentagonal inserts.

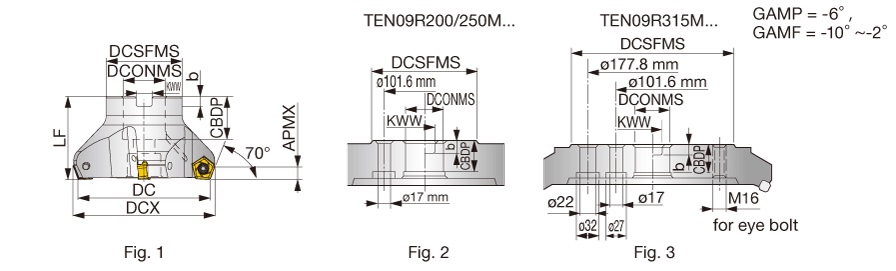

| Cutting Diameter (DC/DCX) | 106 mm | Master Insert Identification (MIID) | PNMU0905GNEN-MJ |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 106 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Left Hand |
| Depth of Cut Maximum (APMX) | 6.4 mm | Application | | Face Milling | |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Functional Length (LF) | 50 mm |
| Hub Diameter (DHUB) | 2.48″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 75 Facemills |
Product Features
| Family Description | 70deg face mills with double sided pentagonal inserts. | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. Please select neutral inserts PN*U0905GNEN ** when using a left hand cutter. |
Shipping Info
Package Weight
3.748
