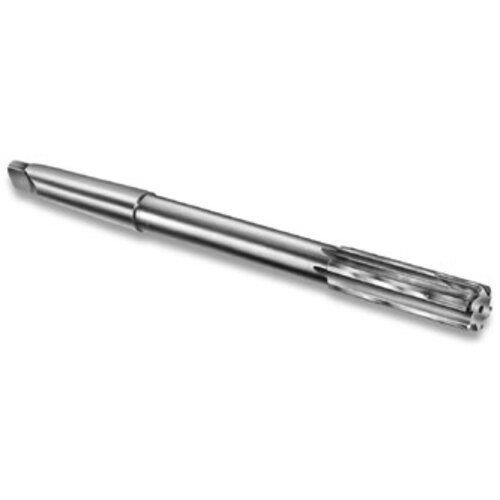

9/32 Dia Dia-HSS-Carbide Tipped Chucking Reamer
Chucking Reamer; 9/32″ Dia. × 6″ OAL × 1-1/2″ LCF ; 4 FL ; Carbide
| Cutting Diameter (DC) | 9/32″ | Cutting Edge Material | Carbide |
| Usable Length (LU) | 1-1/2″ | Shank Type | Taper |
| Flute Count (NOF) | 4 | Flute Type | Straight |
| Overall Length (OAL) | 6″ | Length Chip Flute (LCF) | 1-1/2″ |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 0 Degrees | Decimal Equivalent | .2812 |
Product Features
| Remarks | •Carbide Tipped Chucking Reamers •Carbide tips brazed to one-piece hardened tool steel bodies. Cutting diameter tolerance +.0003 .0000 . For general reaming of steel, cast iron, non-ferrous metals, plastics and non-metals. Reamers for steel have a special cutting geometry; positive radial rake (behind center) narrow circular lands; minimum back taper & longer flutes for straighter holes. | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.281
