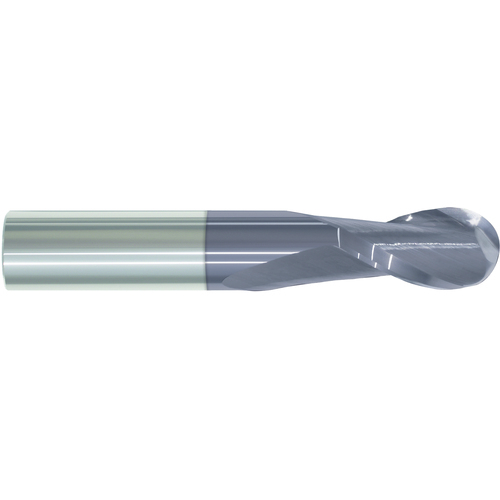

5974T 1/32 × 1/8 2FL SE
BN End Mill; 1/32″ Dia. × 1/16″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 5940T
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 1/32″ | Tool Type | Single End |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Length Group | Stub |
| Depth of Cut Maximum (APMX) | 1/16″ | End Shape | Ball Nose |
| Overall Length (OAL) | 1-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Style | Finishing |
| Coating | AlTiN | Decimal Equivalent | 0.03125″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 5940T |
| Shank Type | Round | Center Cutting | Yes |
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.016
