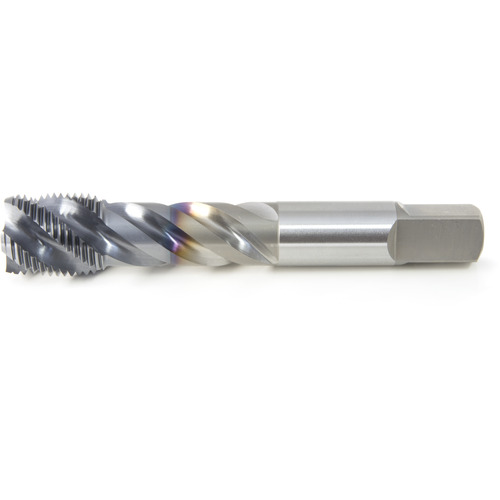

4-40 Dia. - H2-3 FL - HSSE - TiCN - Modified Bottoming - Spiral Flute Tap
| Thread Diameter Size (TDZ) | #4 | Thread Tolerance Class (TCTR) | H2 |
| Threads per Inch (TPI) | 40 | Tool Type | High Performance Tap |
| Thread Standard | NC | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 1-7/8″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 9/16″ | Flute Type | Spiral |
| Usable Length (LU) | 0.559″ | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 3 | Series/List # | 303 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
2.40000
Package Width
.40000
Package Height
.35000
Package Weight
.0100
