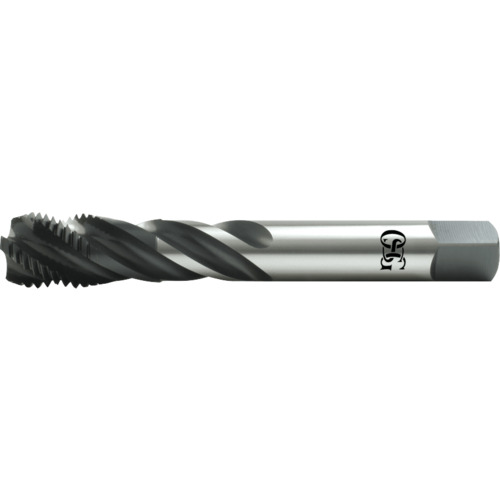

2-1/4-8 2B 6FL 2.5P HYPRO DIN S/O
| Thread Diameter Size (TDZ) | 2-1/4″ | Standard | DIN |
| Threads per Inch (TPI) | 8 | Tool Type | High Performance Tap |
| Overall Length (OAL) | 250 mm | Chamfer | 2.5P |
| Thread Cutting Part Length (THL) | 3-9/16″ | Coating | Black Oxide |
| Usable Length (LU) | 4-1/2″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 1.894″ | End Shape | Chamfer |
| Flute Count (NOF) | 6 | Style | Spiral Flute |
| Cutting Edge Material | HSSCo | Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | 2B | Series/List # | 13025 |
Product Features
| Country of Origin | JP |
Shipping Info
Package Weight
11.7000
