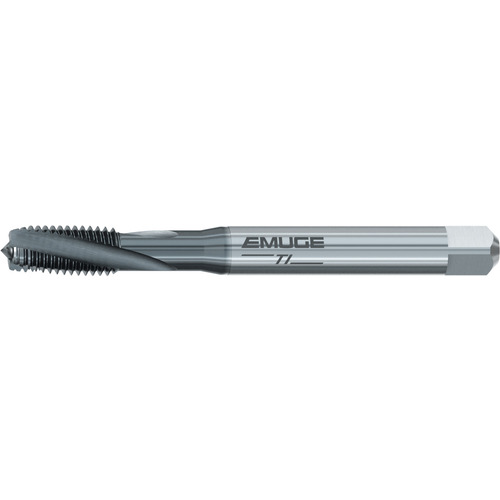

Spiral Flute Tap; #12 -28 × 1.626″ OAL ; HSSE ; Nitride ; UNF ; 3BX ; Series U459611
| Thread Diameter Size (TDZ) | #12 | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 28 | Tool Type | Rekord D-TI |
| Thread Standard | UNF | Chamfer | 2P-3P |
| Overall Length (OAL) | 1.626″ | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.22″ | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees | Coolant Supply Property (CSP) | External |
| Applicable Material | | Super-Alloys / Titanium | | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSE | Series/List # | BU459611 |
| Thread Tolerance Class (TCTR) | 3BX | Application | Blind Hole |
Product Features
| Remarks | • Rekord D-TI tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Best suited for titanium and high tensile strength materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.0264
