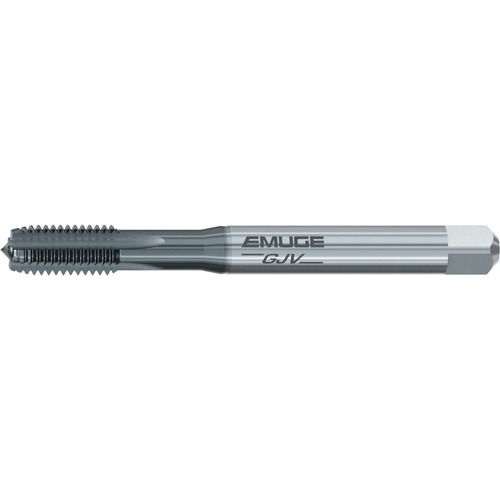

Straight Flute Tap; M6 x1 mm × 80 mm OAL ; 4 FL ; HSSE-PM ; TiCN ; Metric ; 6HX ; Series 010R501
| Thread Diameter Size (TDZ) | M6 | Standard | DIN |
| Thread Pitch (TP) | 1 mm | Tool Type | Rekord A-GJV |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 80 mm | Coating | TiCN |
| Usable Length (LU) | 30 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Application | Blind Hole | Measurement Type | Metric |
| Applicable Material | | Cast Iron | Hard Materials | | Series/List # | 010R501 |
| Cutting Edge Material | HSSE-PM | Thread Size | M6 × 1 |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features
| Remarks | • Rekord A-GJV is a straight flute tap designed for cast iron with vermicular graphite such as CGI & ADI material. • Longer tool life and more consistent thread quality. • This design is suitable for through & blind hole applications. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
