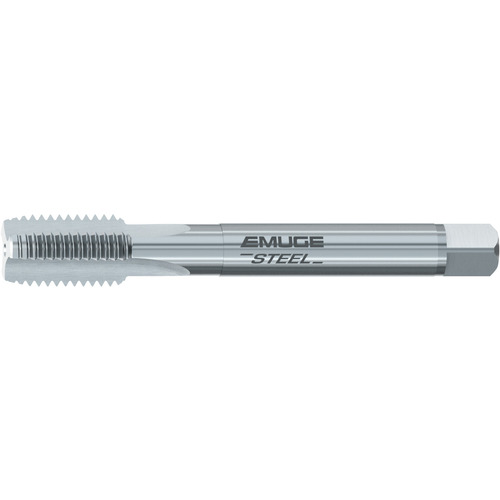

Straight Flute Tap; M16 x1.5 mm × 100 mm OAL ; HSSE ; Bright ; Metric ; 6HX ; Series 0101001
| Thread Diameter Size (TDZ) | M16 | Tool Type | Rekord A-Steel |
| Thread Pitch (TP) | 1.5 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 100 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSSE | Series/List # | 0101001 |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M16 × 1.5 |
| Standard | DIN |
Product Features
| Remarks | • Rekord A-Steel is a straight flute design best suited for short chipping steel material grades in through & blind hole applications • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
