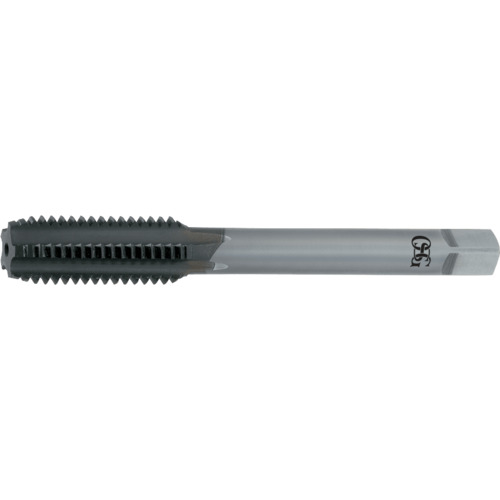

5/16-24 4Fl 3B Carbide Straight Flute Tap-DIA Coated
Straight Flute Tap; 5/16″ - 24 ; 90 mm OAL ; 4 FL ; Carbide ; 3B ; Series 329
| Thread Diameter Size (TDZ) | 5/16″ | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 24 | Thread Tolerance Class (TCTR) | 3B |
| Thread Standard | UNF | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 90 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/8″ | Style | Straight Flute |
| Usable Length (LU) | 1.377″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.317″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 329 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Thread Size | 5/16″ - 24 |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
3.65000
Package Width
.55000
Package Height
.45000
Package Weight
.1300
