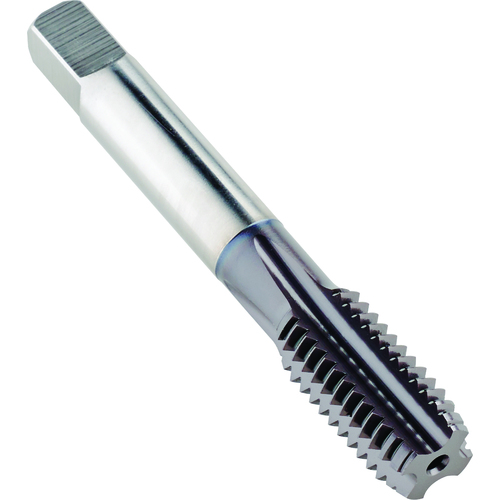

M18 Metric, 1.5 mm Pitch, 4 -Flute, D6 Semi-Bottoming Straight Flute Tap Series/List #2087M
Straight Flute Tap; M18 × 1.5 mm ; 4-1/32″ OAL ; 4 FL ; HSS-PM ; TiAlN ; D6 ; Series 2087M
| Thread Diameter Size (TDZ) | M18 | Chamfer | 0 |
| Thread Pitch (TP) | 1.5 mm | Coating | TiAlN |
| Thread Standard | Metric | Flute Type | Straight |
| Overall Length (OAL) | 4-1/32″ | Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 1.09″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Cutting Edge Material | HSS-PM | Series/List # | 2087M |
| Thread Tolerance Class (TCTR) | D6 | Thread Size | M18 × 1.5 |
| Tool Type | HPT-High Performance Tap-Cast Iron Tap |
Product Features
| Country of Origin | South Korea |
Shipping Info
Package Length
3.12500
Package Width
.75000
Package Height
.75000
Package Weight
0.28
