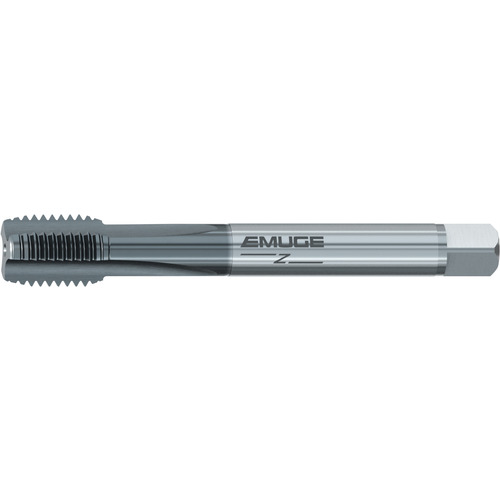

Straight Flute Tap; M30 x3.5 mm × 180 mm OAL ; 4 FL ; HSSE ; TiCN ; Metric ; 6HX ; Series 0109401
| Thread Diameter Size (TDZ) | M30 | Standard | DIN |
| Thread Pitch (TP) | 3.5 mm | Tool Type | Rekord A-Z |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 180 mm | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Flute Type | Straight |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Coolant Supply Property (CSP) | External |
| Applicable Material | | Stainless Steel | | Measurement Type | Metric |
| Cutting Edge Material | HSSE | Series/List # | 0109401 |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M30 × 3.5 |
Product Features
| Remarks | • Rekord A-Z is a straight flute for short chipping materials in through or blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
