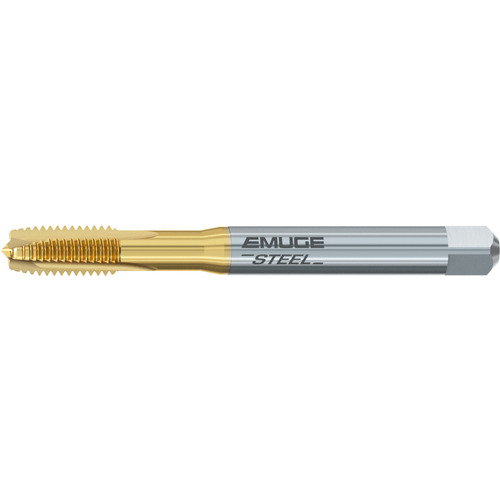

Spiral Point Tap; M4 x0.7 mm × 63 mm OAL ; HSSE ; TiN ; Metric ; 6H ISO 2 ; Series 208400
| Thread Standard | Metric | Standard | DIN |
| Thread Diameter Size (TDZ) | M4 | Tool Type | Rekord B-Steel-L |
| Thread Pitch (TP) | 0.7 mm | Applicable Material | | Steel | Stainless Steel | |
| Thread Tolerance Class (TCTR) | ISO 2 | 6H | Application | Blind Hole |
| Overall Length (OAL) | 63 mm | Connection Diameter Machine Side (DCONMS) | 4.5 mm |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Series/List # | B0208400 |
Product Features
| Remarks | • Rekord B-Steel-L design is typically for through hole applications in long-chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
