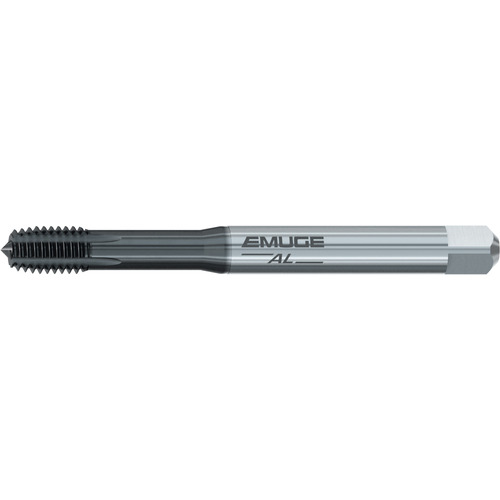

‎Forming Tap; M2.5 × 0.45 mm × 50 mm OAL × 2.8 mm Shank Dia. ; HSSE-PM ; GLT-8 ; 6HX

Item # ER45521Y7000025

UNSPSC: 23241615

Brand: Emuge-Franken

MFG#: B521Y700.0025

Tool Type

Forming Tap

Application

Blind Hole

Thread Diameter Size (TDZ)

M2.5

Applicable Material

| Aluminum / Non-Ferrous Materials |

Thread Pitch (TP)

0.45 mm

Coating

DLC

Overall Length (OAL)

50 mm

Coolant Supply Property (CSP)

External

Connection Diameter Machine Side (DCONMS)

2.8 mm

Chamfer

‎2P-3P

Thread Tolerance Class (TCTR)

6HX

Cutting Edge Material

HSSE-PM

Tap Standard

DIN

Cutting Direction (HAND)

Right Hand

Thread Standard

Metric

Series/List #

B521Y700

Product Features

Remarks

• The InnoForm AL roll form tap is designed for alluminum alloys. • Longer tool life and more consistent thread quality.

Country of Origin

Germany

Package Weight

0.1
