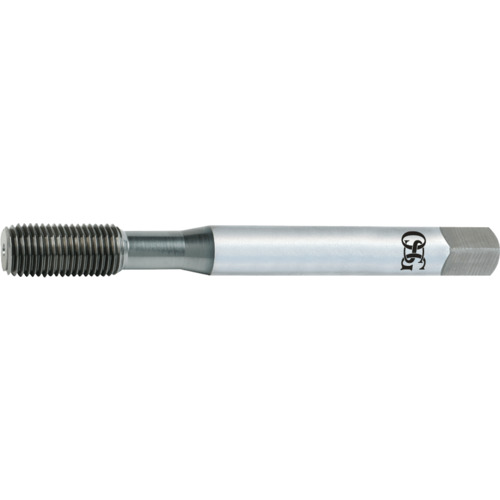

5/8-11 0 Fl H10 HSS-CO Forming Tap- Bright
| Tool Type | Forming Tap | Coating | Uncoated |
| Thread Diameter Size (TDZ) | 5/8″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3.81″ | Threads per Inch (TPI) | 11 |
| Thread Cutting Part Length (THL) | 1-13/16″ | Helix Angle | 0 Degrees |
| Usable Length (LU) | 2.126″ | Chamfer | 2.5P |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Measurement Type | Inch |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H10 | Cutting Edge Material | HSSCo |
| Thread Standard | UNC | Series/List # | 14001 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Thread Size | 5/8″ - 11 |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
5.05000
Package Width
.85000
Package Height
.85000
Package Weight
.2850
