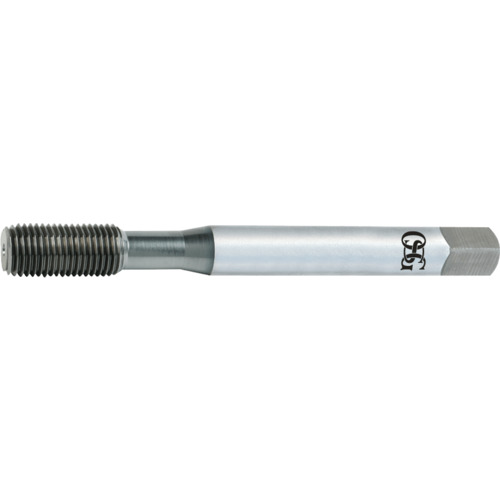

6-40 H4 4.5P NRT TICN
| Tool Type | Forming Tap | Coating | TiCN |
| Thread Diameter Size (TDZ) | #6 | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2″ | Threads per Inch (TPI) | 40 |
| Thread Cutting Part Length (THL) | 11/16″ | Chamfer | 4.5P |
| Usable Length (LU) | 0.744″ | Measurement Type | Wire Gauge |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | End Shape | Chamfer |
| Flute Count (NOF) | 0 | Cutting Edge Material | HSSCo |
| Thread Tolerance Class (TCTR) | H4 | Series/List # | 14001 |
| Thread Standard | UNF | Thread Size | #6 - 40 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
.0100
