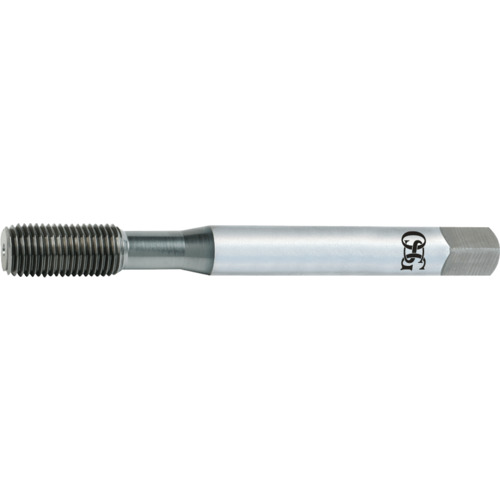

10-24 0 Fl H5 HSS-CO Forming Tap- TiCN
| Tool Type | Forming Tap | Coating | TiCN |
| Thread Diameter Size (TDZ) | #10 | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.37″ | Threads per Inch (TPI) | 24 |
| Thread Cutting Part Length (THL) | 7/8″ | Helix Angle | 0 Degrees |
| Usable Length (LU) | 0.898″ | Chamfer | 2.5P |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H5 | Cutting Edge Material | HSSCo |
| Thread Standard | UNC | Series/List # | 14001 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Thread Size | #10 - 24 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.02
