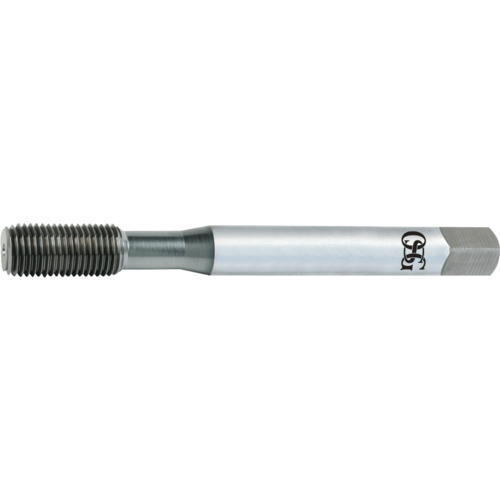

3/4-16 0 Fl H13 HSS-CO Forming Tap- Steam Oxide
| Tool Type | Forming Tap | Coating | Black Oxide |
| Thread Diameter Size (TDZ) | 3/4″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 4-1/4″ | Threads per Inch (TPI) | 16 |
| Thread Cutting Part Length (THL) | 2″ | Helix Angle | 0 Degrees |
| Usable Length (LU) | 2.433″ | Chamfer | 4.5P |
| Connection Diameter Machine Side (DCONMS) | 0.59″ | Measurement Type | Inch |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H13 | Cutting Edge Material | HSSCo |
| Thread Standard | UNF | Series/List # | 14001 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Thread Size | 3/4″ - 16 |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
4.35000
Package Width
1.00000
Package Height
.85000
Package Weight
.3750
