GQHG250608R01 IN2504
| Applicable Material | | Steel | Cast Iron | | Shape | Round |

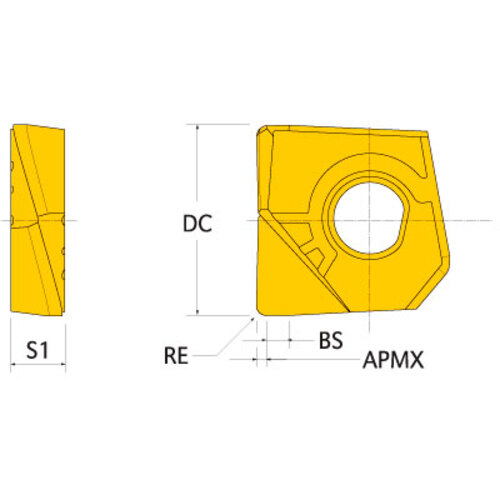

| Insert Length (INSL) | 0.877″ | Insert Style | GQHG250608R01 |
| Corner Radius (RE) | 0.031″ | Insert Body Diameter (INSBD) | 1″ |
| Depth of Cut Maximum (APMX) | 0.031″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.244″ | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 0.039″ | Measurement Type | Inch |
| Coating | TiAlN/TiN | Body Material | Steel |
| Grade | IN2504 |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.099
